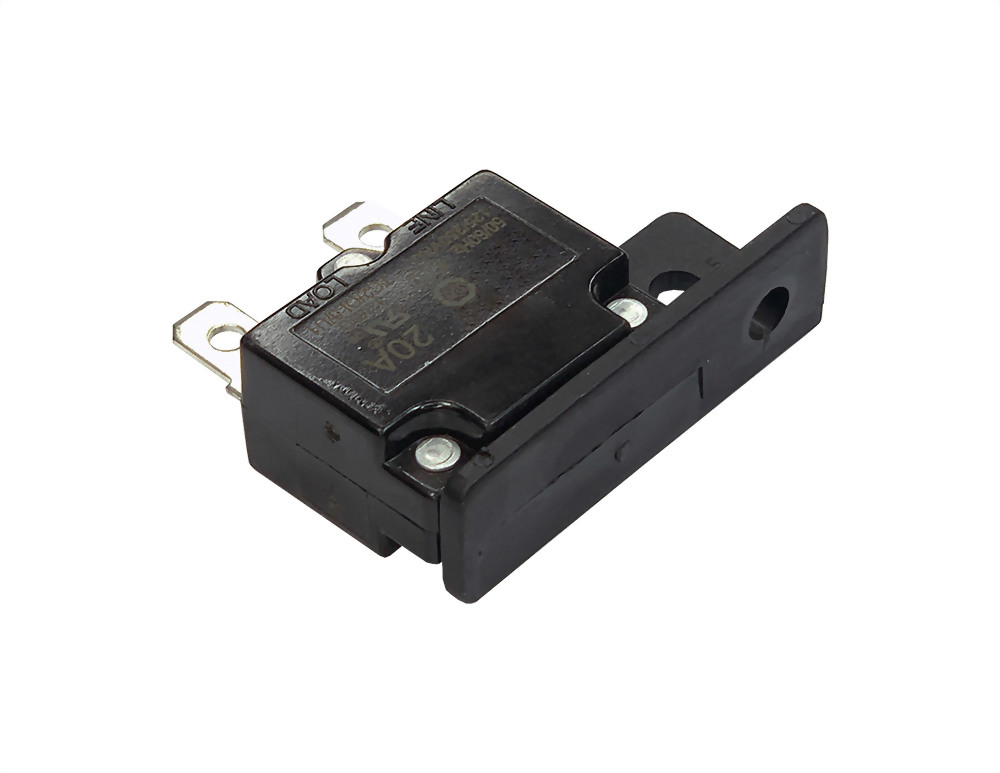

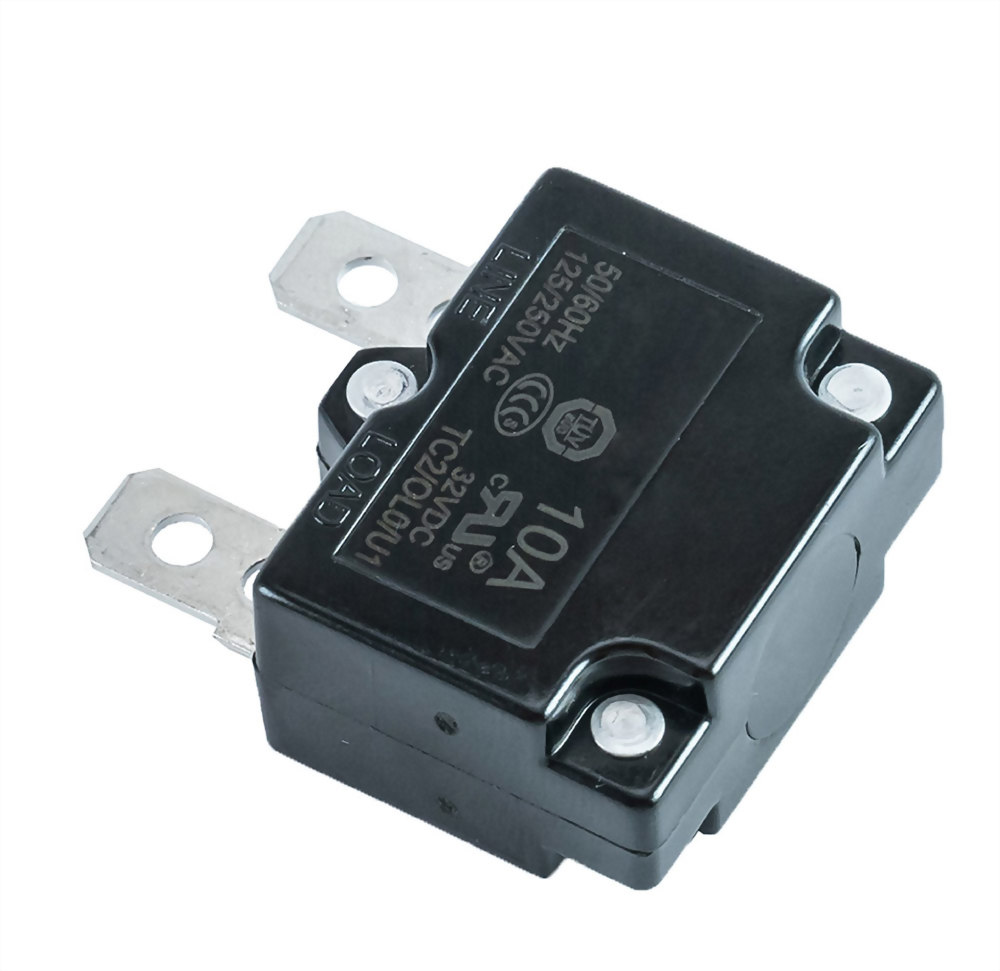

CIRCUIT BREAKER (SCB88AR Series)

Technical data

•    Current rating range: 3~30A

•    Input voltage rating: 125/250VAC: 32/SOVDC

•    Contact Endurance: 125Vac X150% of rated current >500 cycles

   125Vac X200% of rated current >200 cycles

•    Insulation Resistance: >100MOHM (DC 500V)

•    Dielectric Strength: >1,500VAC/min.

•    Degree of protection Terminal area IP00,

Mechanical/Environmental Data

•    Operating Ambient Temperature: -10°C to +60°C

•    Termination: 110"(2.8mm) quick connects or solder terminals

•    Mounting: Various options. See Ordering Information and drawings

Compliance with Rohs

The product accords with the requirement of ROHS(2011/65/EU) Contacts use Exempted item of RoHS Directive 2010/571/EU 8(a)

Compliance with REACH, PAHS, PH1, PH2, PH3

Typical applications

Transforms, Motors, Battery chargers, Power supplies,

Calibration(at 25°C)

•    100% of Rated Current: Hold , No Trip

•    150% of Rated Current: Trip Within 1 Hour

•    200% of Rated Current: 5-30 sec Trip

•    300% of Rated Current: 1.5-5.0 sec Trip
