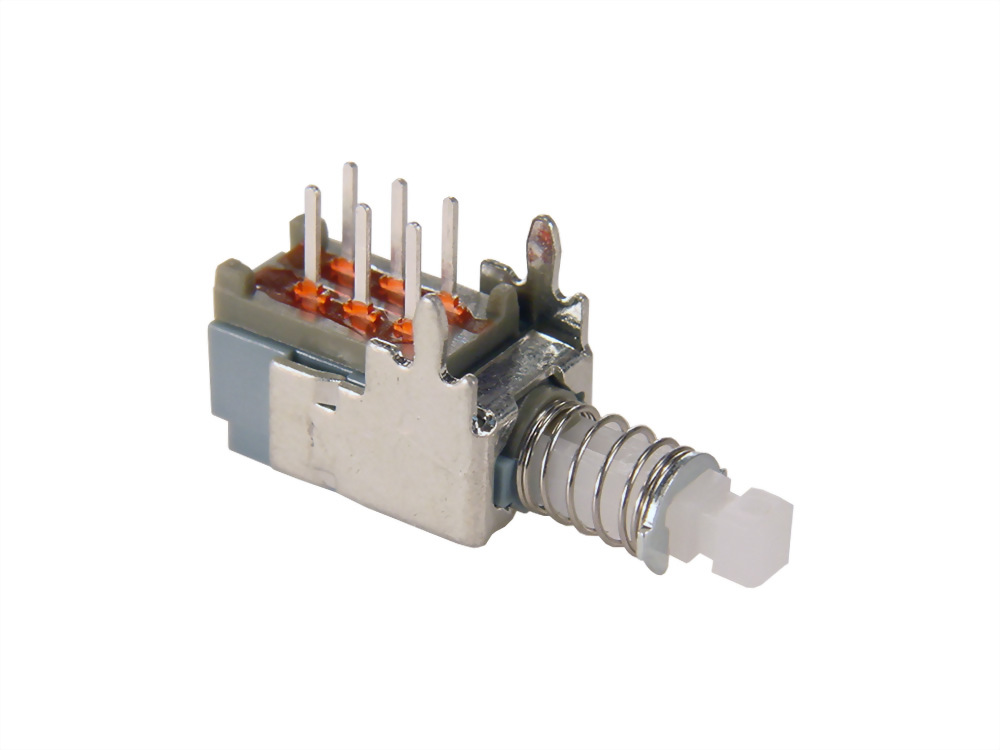

• Interruptor de empuje (SPA-120L(N)-22G)

Interruptor de empuje (SPA-120L(N)-22G)

SPECIFICATION:
Rating: 0.1A 30V DC
PIN Pitch: 2.5mm
Operating Force: 230 ± 50gf
Insulation Resistance: 100 MΩ Mim. 250V DC
Contact Resistance: 50MΩ Max.
Withatand Voltage: AC 250 V 1 Minute
Operating Temperature: -25oC ~ +70oC
Mechanical Life: 30,000 cycles
Electrical Life: 10,000 cycles
FUNCTION:
L = Lock Type
N = Non Lock Type
Approvals : RoHS
modelo : SPA-120L(N)-22G

SPECIFICATION:

Rating: 0.1A 30V DC

PIN Pitch: 2.5mm

Operating Force: 230 ± 50gf

Insulation Resistance: 100 MΩ Mim. 250V DC

Contact Resistance: 50MΩ Max.

Withatand Voltage: AC 250 V 1 Minute

Operating Temperature: -25oC ~ +70oC

Mechanical Life: 30,000 cycles

Electrical Life: 10,000 cycles

FUNCTION:

L = Lock Type

N = Non Lock Type



Approvals : RoHS
