IEC 60320 C8 socket-entradas-C8 (SWHJC-022A)

SPECIFICATION:
Rating: 7A 250 V AC
Screw Hole: 27mm
Operating Force: 4.9N ~ 58.8N
Contact Resistance: 50MΩ Max.
Insulation Resistance: 100 MΩ Mim. 500V DC
Electrical Strength: AC 1,500 V 1 Minute
Operating Temperature: 45oC ~ 85oC
POLARIZED

modelo : SWHJC-022A

cantidad :

Descripción

SPECIFICATION:

Rating: 7A 250 V AC

Screw Hole: 27mm

Operating Force: 4.9N ~ 58.8N

Contact Resistance: 50MΩ Max.

Insulation Resistance: 100 MΩ Mim. 500V DC

Electrical Strength: AC 1,500 V 1 Minute

Operating Temperature: 45oC ~ 85oC

POLARIZED

Approvals: RoHS, UL, CSA

Productos Relacionados

IEC 60320 C8 socket-entradasC8 (SWJR-201SAR)

modelo : SWJR-201SAR

IEC 60320 C8 socket-entradas-C8 (SWHJC-033)

modelo : SWHJC-033

IEC 60320 C8 socket-entradas-C8 (SWSO-222-R-0R)

modelo : SWSO-222-R-0R

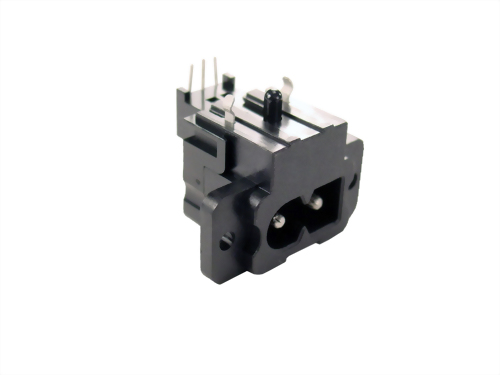

IEC 60320 C8 socket-entradas-C8 (SWHJC-020A)
