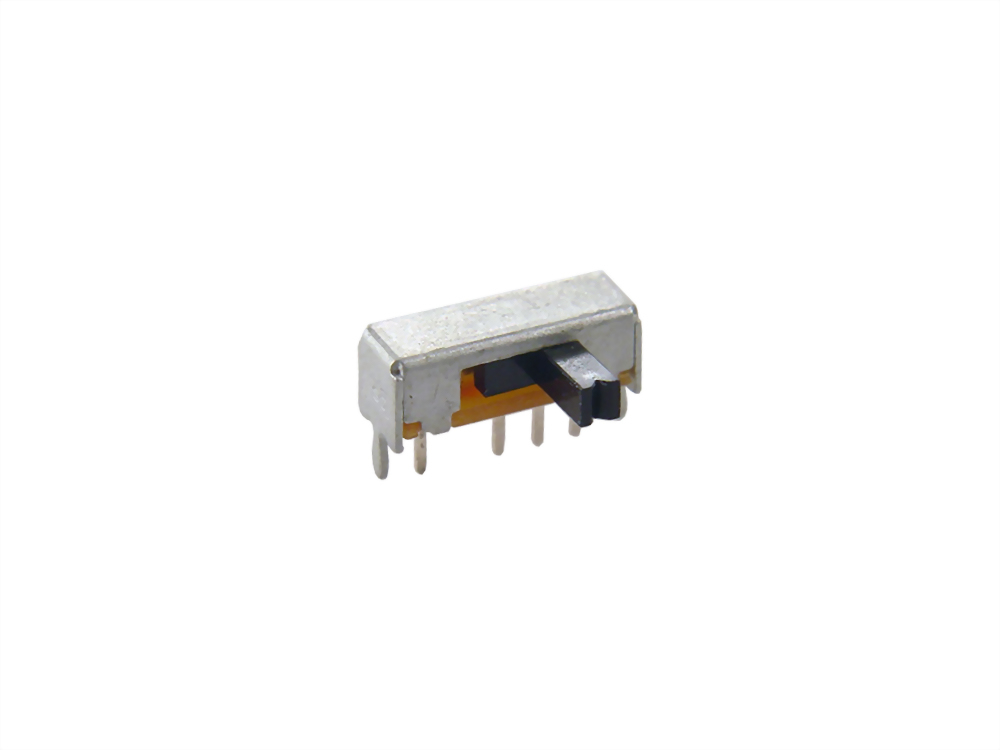

Interruptor deslizante (SLK-1301)

SPECIFICATION:

Rating: 0.3A 30V DC

SIZE: 12.6(L) x 4.3(W) mm

1P3T , RG = 2~6 mm

Travel: 2 mm

Terminal Pitch: 2 mm , 4 mm

Dielectric Strength: AC 500 V 1 Minute

Insulation Resistance: 100 MΩ Mim. 500V DC

Contact Resistance: 30MΩ Max.

Operating Temperature: -16^oC ~ +60^oC

Life Test: 10,000 Cycles

Approvals : RoHS
