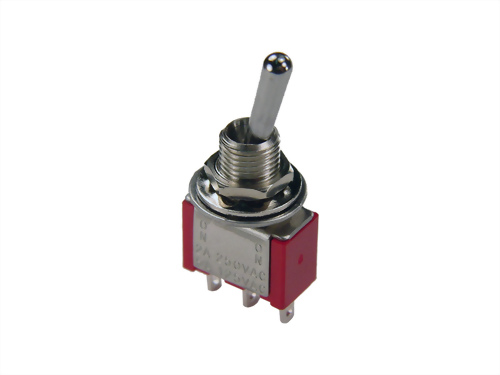

MINI TOGGLE SWITCH
SPECIFICATION:
Rating: 5A 120V AC / 28V DC
Pitch: 3.81mm
Dieletric Strength: AC 1,000 V 1 Minute
Insulation Resistance: 1,000 MΩ Mim.
Contact Resistance: 10MΩ Max.
Operating Temperature: -30oC ~ +130oC
Electrical Life: 50,000 Cycles
FUNCTION:
□ □ = 01: on-on
= 02: on-(on)
= 03: on-off-on
= 04: (on)-off-(on)
= 05: on-off-(on)
( ) = Momentary
Approvals : RoHS
